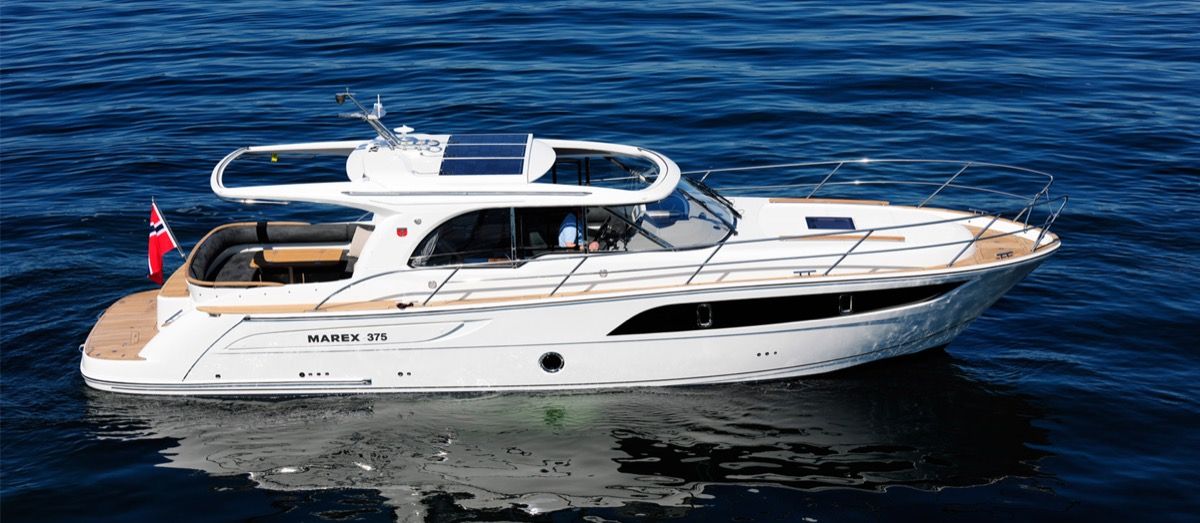

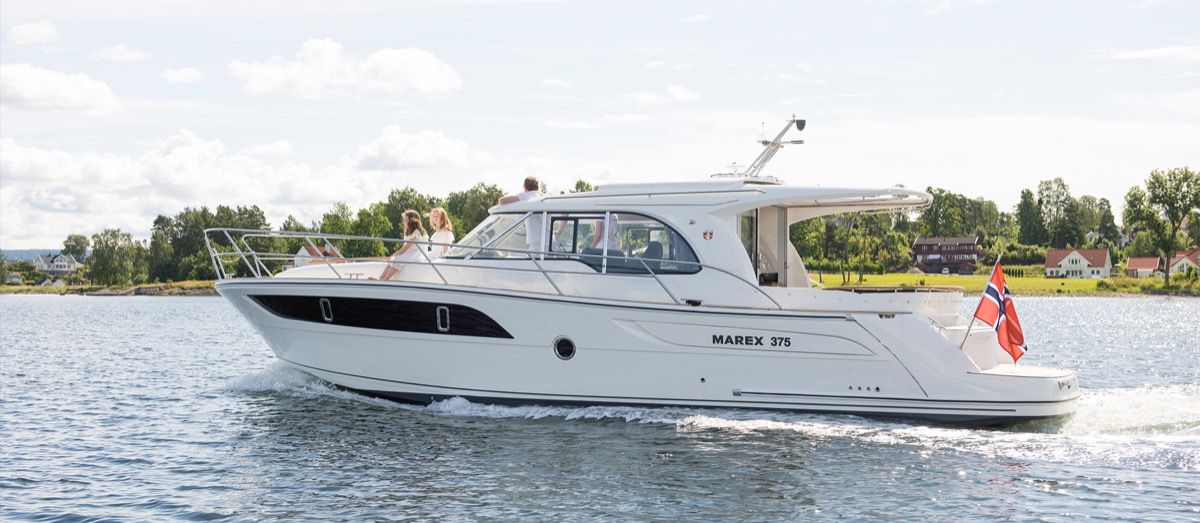

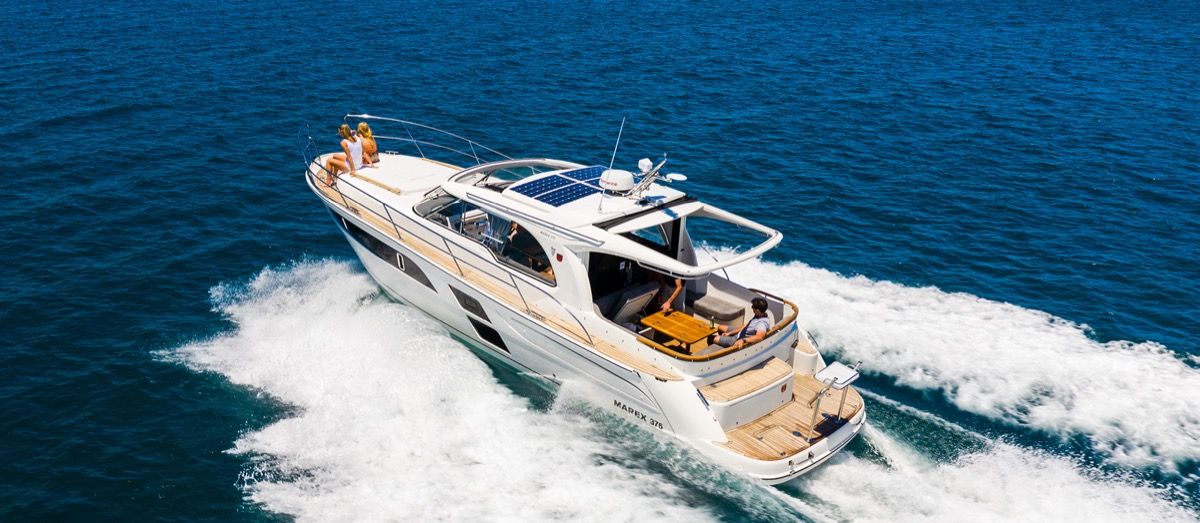

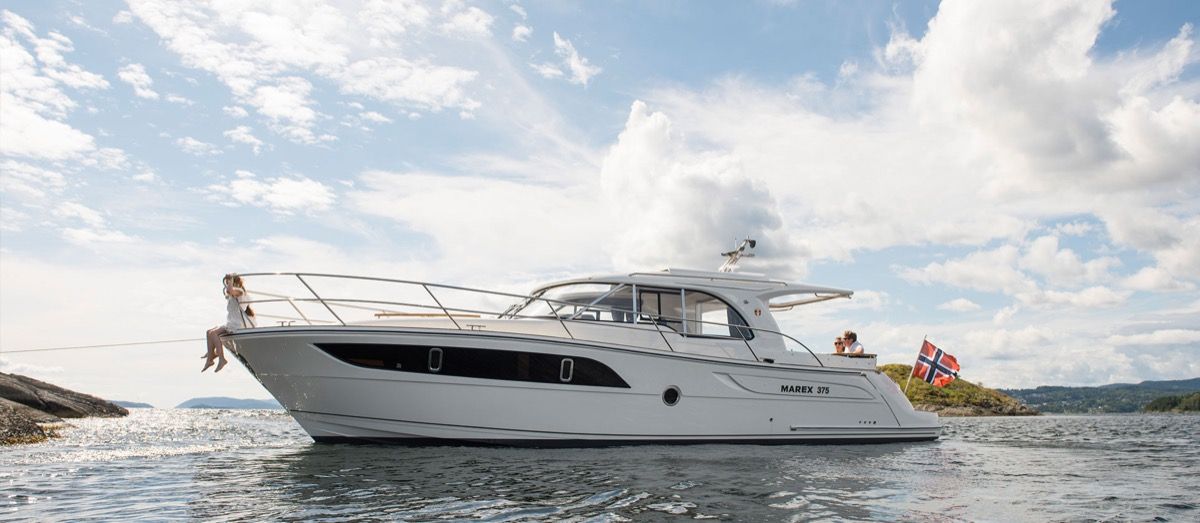

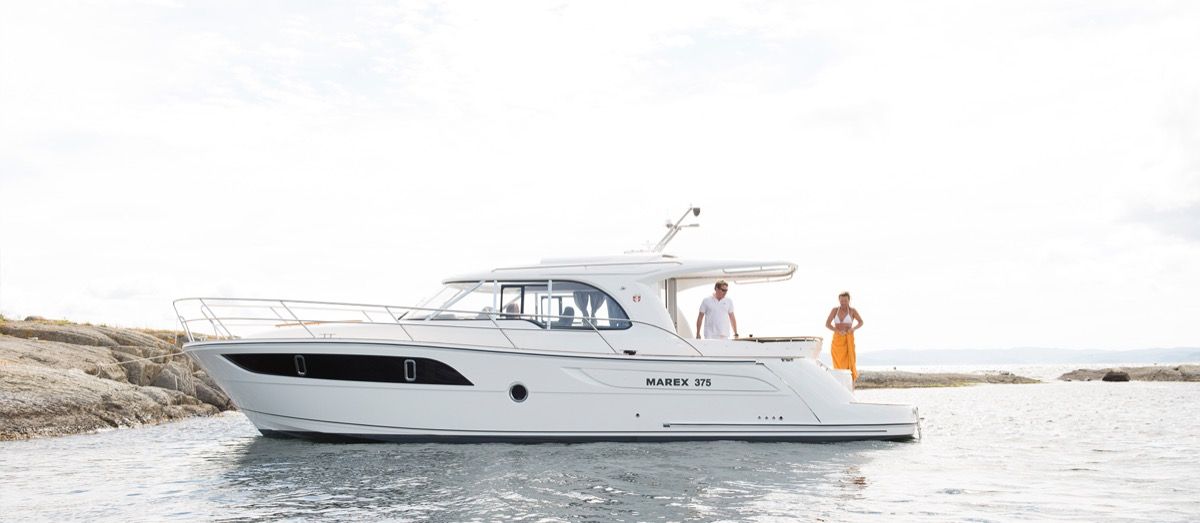

The new Marex 375 is the 2nd largest motorboat from Marex. Its’ design was based on the same design expression as the award-winning Marex 370 ACC.
The idea has been to focus on the space above the deck. We have made room for two large seating areas in the boat.
The main emphasis is that today’s customers want to stay upstairs and not have a seating area below deck.
Marex has also tried to give the boat a yacht feeling in the design of the bow and with the wide side deck.
Seaworthiness of Marex 375 will be as good as the 370 ACC. It has a planning hull, built for single or twin engine with gear or shaft.
UNIQUE SOLUTIONS
| √ | Spacious storage compartments |
| √ | Clever canopy |
| √ | Excellent mid cabin |

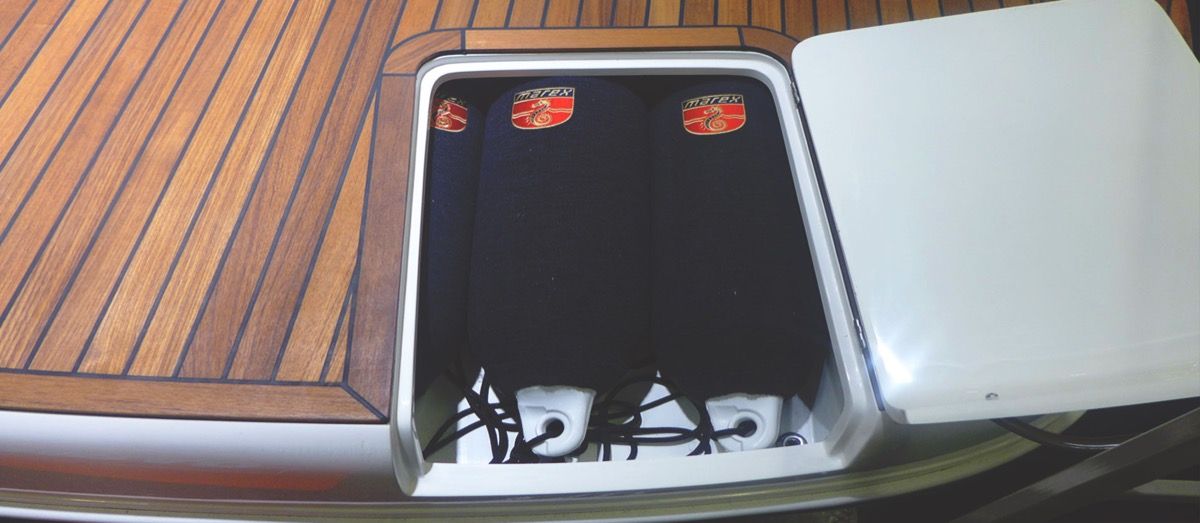

| √ | Easy fender access |
| √ | Extra stron cockpit construction |
| √ | Large seating area outside |
| √ | Integrated anchor |
TECHNICAL SPECIFICATIONS
| Hull type | Planing |
CE category | B |
| Length |
12.05 m |
Beam | 3.55 m |
| Depth | 1.05 m |
Weight | 7700 kg |
| Fresh water | 340 l | Fuel tank |
700 l |
| Blackwater tank | 150 l |
Capacity | 14 persons |
| Berths | 2 + 2 + 2 |
Cabin headroom | ca. 2.0 m |
| Batteries | 4x service, 1x per engine (480 Ah) |
Side decks width | 0.28 m |
| Height without cradle |
4.30 m |
Height above waterline without mast | 2.90 m |
| Water heater | 60 l | Grey water tank (optional) | 160 l |
| Master bed (front cabin) | 2.00 x 1.50 m | Guest bed (mid cabin) | 2.00 x 1.90 m |
| Sun bed | 1.65 x 2.40 m | Bathing platform (short version) |
0.85 x 3.00 m |
| Bathing platform (long version) | 1.19 m | Height without cradle including mast | 4.21 m |
| Height above waterline without mast | 2.88 m | Width of side decks (minimum) | 0.25 m |
ENGINES

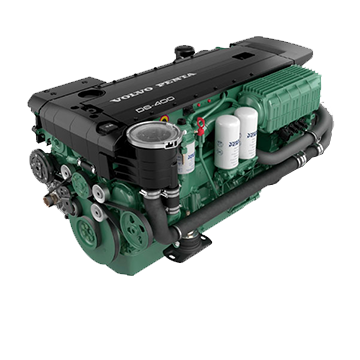

| D6-400 EVC DPH (400 HP) Sterndrive + Software • D6-440 EVC DPI (440 HP) Sterndrive + Software • 2x D4-300 EVC DPI (2x300 HP) Sterndrive & el. Steering + Software • 2x D4-320 EVC DPI (2x320 HP) Sterndrive & el. Steering + Software • D6-440 EVC (440 HP) Reverse "V" Shaft + Software • D6-480 EVC (480 HP) Reverse "V" Shaft + Software • 2x D4-300 EVC (2x300 HP) Reverse "V" Shaft + Software |
EQUIPMENT
| Serial | + |
| Optional | ◯ |
| Antifouling boat + shaft | + | Air conditioner | ◯ |
| Bar chair on table column (2pcs) | + | Anchor chain s/s instead of lead rope (50m) | ◯ |
| Battery charger (60A) and shore connection with 25m cable | + | Anchor chain counter on dashboard | ◯ |
| Battery pack (4 x lead-acid deep discharge + 1 x lead-acid start for each engine) (~480Ah) | + | Anchorwinch AFT electric with lead-rope (16mm x 50m) with remote control | ◯ |
| Bilge pump automatic (2pcs) | + | Anchorwinch FRONT electric with lead-rope (16mm x 50m) with remote control | ◯ |
| Canopy | + | Anchorwinch prepared for, el wires pulled through | ◯ |
| Curtains in cabins | + | Audio option 2: standard + amplifier + subwoofer | ◯ |
| Defroster 10kW + hot air outlet in cockpit | + | Battery extra (95Ah) (price is per battery) | ◯ |
| El. main switches with buttons on dashboard and battery monitoring | + | Battery upgrade to service-free AGM (price is per battery) includes charger upgrade | ◯ |
| Fire alarm in all cabins + engine room | + | Bedding set for 1 bed (price per set: includes 1 sheet+ 2 blanket covers 140x200 + 2 pillow covers 50x70 ) | ◯ |
| Fridge 130L and Freezer/fridge drawer (-15…+4) 29L | + | Bow ladder | ◯ |

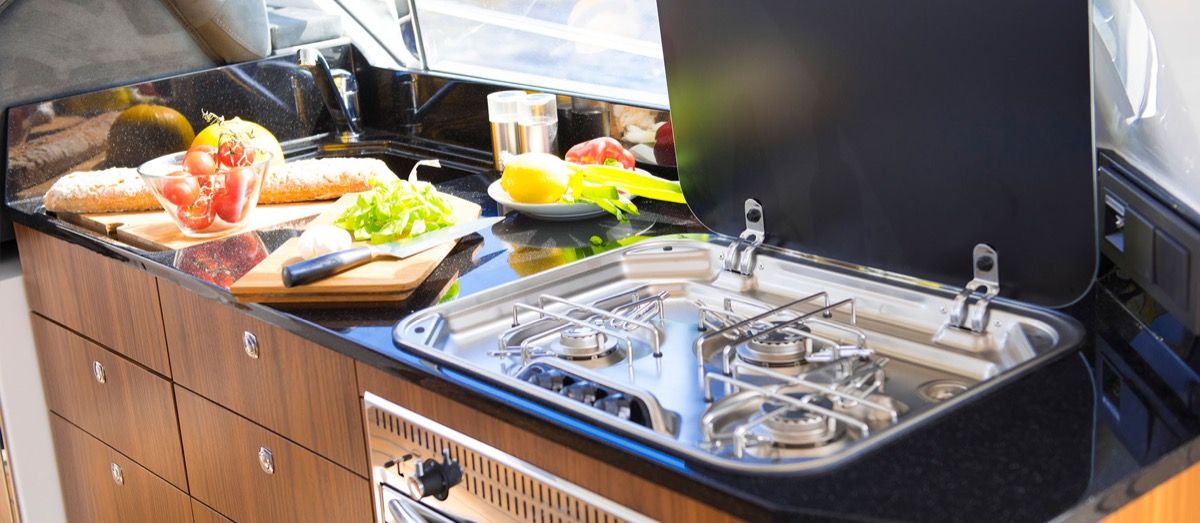

| Gas cooker and oven | + | Bow sprit with ladder | ◯ |
| Hardtop | + | Camera for back view | ◯ |
| Heater 5,5kW + CO alarms in cabins | + | Courtesy lights | ◯ |
| Hot water w/230V-boiler 60L | + | DAB (if You don’t have FM) module for FUSION radio | ◯ |
| Interceptors / trimflaps | + | Davits, removable in s/s | ◯ |
| Opening windows in cockpit both sides | + | Dimmers for LED lights (price per one group) | ◯ |
| Propeller BOW 6hp with remote control | + | Dimmable mood lights on wooden rails | ◯ |
| Radio FUSION with external antenna and speakers | + | Installation of a switch or any socket (12V/antenna/230V/etc.) The place must be specified (price per item) | ◯ |
| Shower on platform | + | El sockets of UK;CH;NZ;AU standards | ◯ |
| USB in all cabins | + | External window sun protective cover | ◯ |
| Teak on gunwale, fender boxes, MAREX developed ash saloon floor | + | Fenderbox/wall in engineroom - ask for availability | ◯ |
| Toilet electrical with electrical discharge and septic tank indication | + | Fenders w/socks & Marex logo (6pcs) + mooring ropes (6 x 7m) | ◯ |
| Transportation wrapping | + | Foldable radar mast | ◯ |
| TV antenna with TV outlets | + | Generator diesel Whisper power Marine (~4kW) + 6A separate charger | ◯ |
| Windows wipers & washer from main fresh water tank | + | Grey water tank | ◯ |
| Wood floor and steps in cabins | + | Glomex Wifi/4G Webboat LITE (4G requires SIM Card) | ◯ |
| High pressure deck wash pump from fresh water tank and sea + automatic furling | ◯ | ||
| Inverter combi 12/230V 2000 with 60A charger instead of STD | ◯ | ||
| Inverter combi 12/230V 3000 with 100A charger instead of STD | ◯ | ||
| LED docking lights top mounted | ◯ | ||
| Magnezium anodes instead of zinc/aluminium | ◯ | ||
| Mosquito net for aft deck door | ◯ | ||
| Mosquito nets set for all windows (9 pcs) | ◯ | ||
| Over matrasses set (visco-elastic memory material) (all cabins) | ◯ | ||
| Prepared for hydraulic autopilot (hydraulic hoses, 12V, fuse) shaft | ◯ | ||
| Propeller AFT thruster 6hp with remote control | ◯ | ||
| Rudder possition indicator for shaft | ◯ | ||
| Searchlight with joystick control | ◯ | ||
| Shore power automatic furler | ◯ | ||
| Solar panels 436W | ◯ | ||
| Sun deck/floating mattress on the front deck | ◯ | ||
| Lounger on the front deck with floating mattress | ◯ | ||
| Teak option 1: Full pack Options 2,3,4 included (synthetic teak option availible) | ◯ | ||
| Teak option 2: Sidewalks (synthetic teak option availible) | ◯ | ||
| Teak option 3: Platform and aft hatches (synthetic teak option availible) | ◯ | ||
| MAREX developed ash option 4: Aft deck floor (synthetic teak option availible) | ◯ | ||
| Transportation protection /cover | ◯ | ||
| Underwater lights 2 pcs on transom (color: white) | ◯ | ||
| Underwater lights 2 pcs on transom (color: RGB) | ◯ | ||
| Volvo Penta active corrosion protection for z-drives (double engine) | ◯ | ||
| Volvo Penta active corrosion protection for z-drives (single engine) | ◯ | ||
| Zipwake dynamic trim control system | ◯ | ||
| Winter conservation of the boat before delivery | ◯ | ||
